QuickPouch Horizontal

Compact Horizontal Form/Fill/Seal Machine

BorderPak Preferred Packaging Solution

Materials & Supplies

PRODUCT PHOTO GALLERY

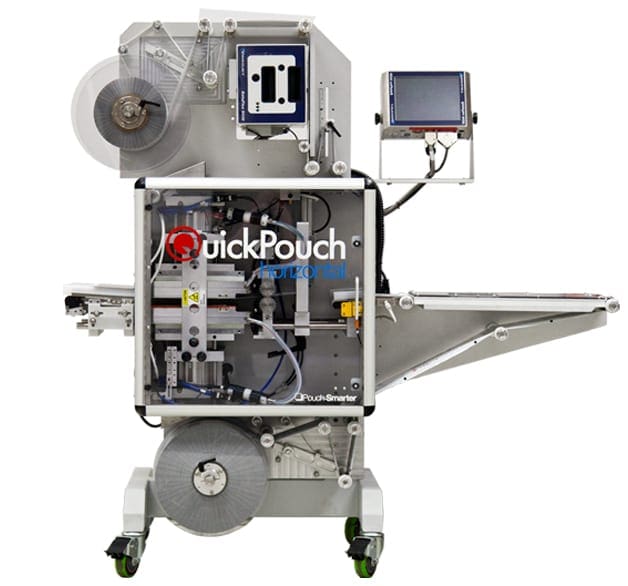

QUICKPOUCH HORIZONTAL DESCRIPTION

The QuickPouch Horizontal is a compact, economical, automated, pouch form/fill/seal machine designed for applications which require careful product orientation within the pouch. The Horizontal has a fully interlocked lexan enclosure, which helps control the movement of air over pouches and parts, as well as protecting the operator.

The system is fully validatable and has been used to package products ranging from medical devices, IVD test kits, microtiter plates (well plates), dental implants, surgical instruments, and wound care dressings, as well as cosmetic products, food products, and industrial products.

QUICKPOUCH HORIZONTAL FEATURES

Average rate of 20 cycles per minute
Manual (operator paced) mode
Automatic (machine paced) mode
Dual web system allows for multiple materials
Interlocked safety enclosure
Foot pedal or opti-touch trigger included
Operator display indicates mode, counters, alarms, mechanic settings, and more

POUCH SIZES
Up to 6″ wide
Up to 9″ long
For larger pouches see the Horizontal Plus

DIMENSIONS
Width: 36 inches
Height: 60 inches
Depth: 25 inches
Weight: 250lbs
*Options may affect machine dimensions

POUCH MATERIALS
Tyvek®
Polyester
Foil laminate
Paper laminate

OPTIONS
Validation Packages
Automatic Loading
Gas Purge (nitrogen, etc)
Vacuum Seal
In-line Printing and/or Label Application
UDI Vision System
Multiple Lanes for Increased Production
Front/Back Print Registration
Various Outfeed Conveyor Options
Inspection and Reject System
Die Cutting and Hole Punching
Frangible Seal
